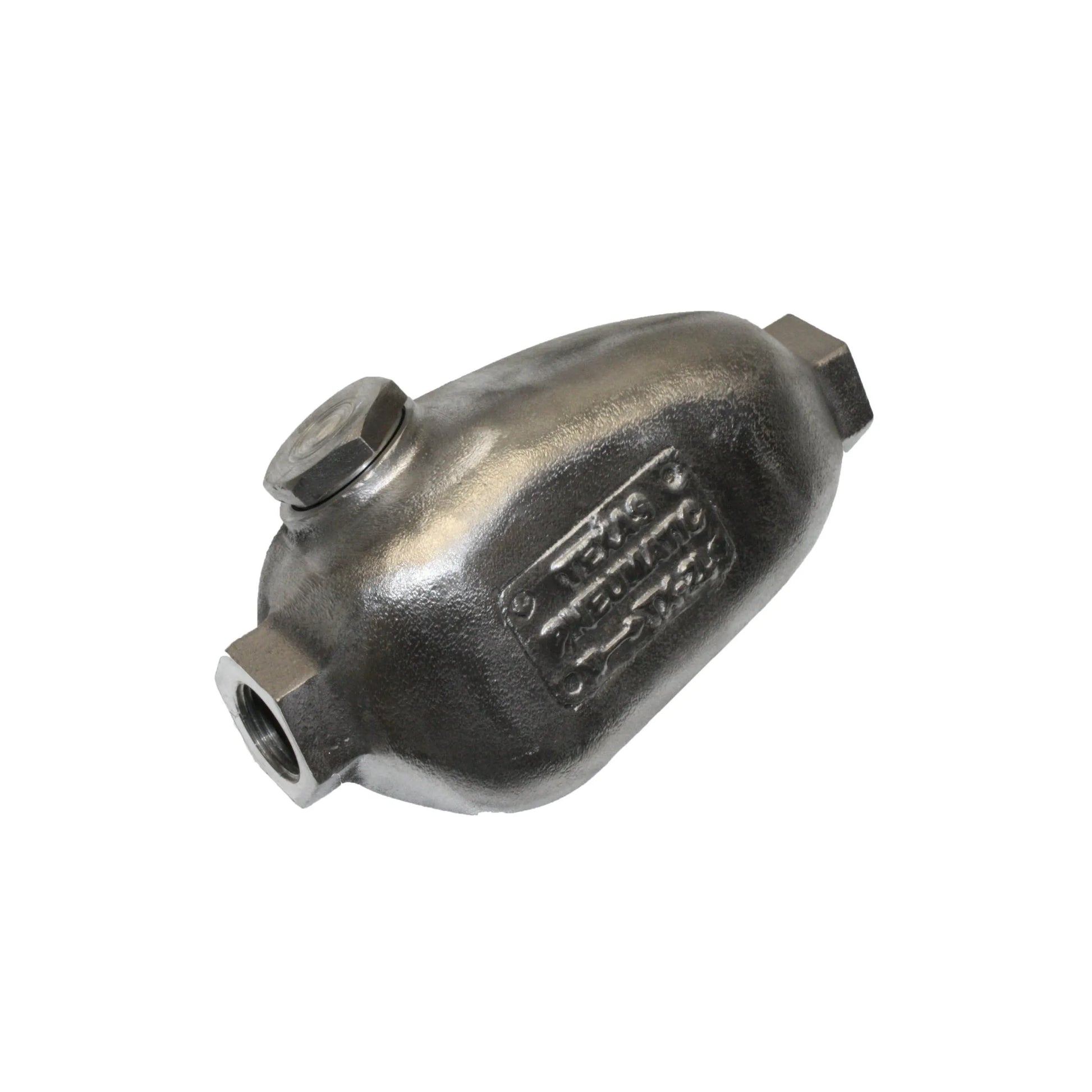

In-Line Lubricator – 3/4″ – TP-3L (Price On Application)

The TP-3L In-Line Lubricator is a high-capacity lubrication unit engineered for heavy-duty pneumatic tools and large industrial air systems. Designed to deliver consistent, controlled oiling directly through the air line, it helps reduce wear, extend tool life and maintain peak performance across demanding applications.

Built with a robust cast-aluminium body and equipped with 3/4″ female pipe threads on both ends, the TP-3L is suitable for high-flow air circuits. Its large 11.0 fl oz reservoir provides long service intervals, making it ideal for continuous-duty tools used in construction, mining, fabrication, quarries and industrial workshops.

Rated for 300 psi maximum working pressure and handling up to 70 cfm at 90 psi, this lubricator is designed for the heavy end of industrial pneumatic equipment.

Features
• High-capacity in-line lubricator for heavy pneumatic tools
• 3/4″ female pipe threads for high-flow installations
• Durable cast-aluminium body for industrial reliability
• Large 11.0 fl oz reservoir for extended lubrication cycles
• Automatically delivers controlled lubrication to reduce tool wear
• Rated to 300 psi maximum working pressure
• Supports up to 70 cfm @ 90 psi airflow

Specifications
• Thread Size: 3/4″ NPT (female both ends)
• Reservoir Capacity: 11.0 fl oz
• Max Working Pressure: 300 psi
• Max Air Flow: 70 cfm @ 90 psi
• Body Material: Cast aluminium

Applications
• Heavy-duty pneumatic tools (breakers, rock drills, impact wrenches)
• Construction, mining and tunnelling
• Fabrication shops and industrial maintenance
• High-flow air systems in plants and workshops
• Any system requiring continuous, long-duration lubrication
