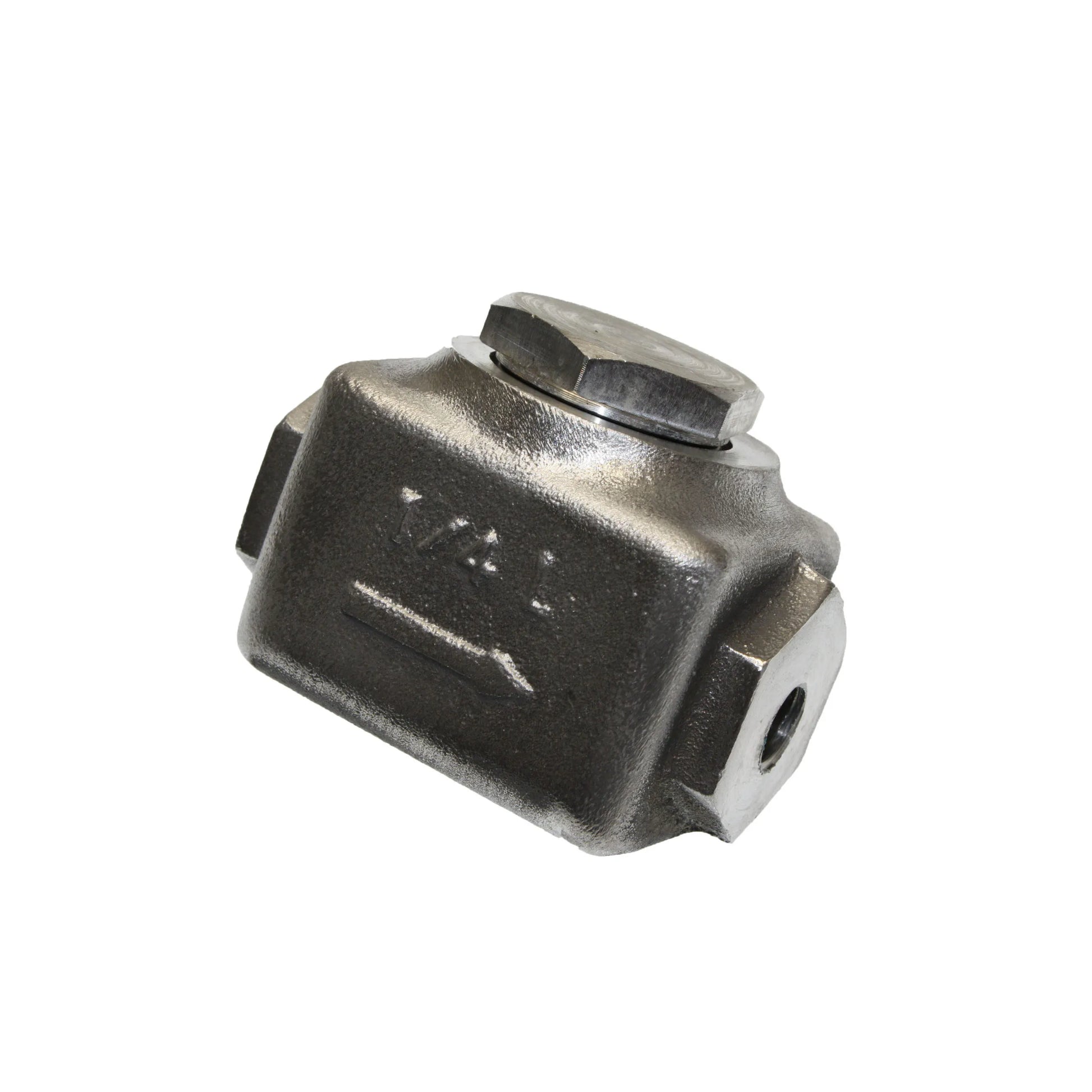

In-Line Lubricator – 1/4″ – TP-1L (Price On Application)

The TP-1L In-Line Lubricator is a compact, durable air-line accessory designed to automatically supply lubrication to pneumatic tools, ensuring longer service life and consistent performance. With 1/4″ female pipe threads on both ends and a cast-aluminium body, this lubricator is built for industrial reliability and easy installation in any compressed air system.

Equipped with a 1.05 fl oz reservoir, the TP-1L delivers controlled lubrication without interrupting workflow. With a maximum working pressure of 500 psi and an airflow capacity of 20 cfm at 90 psi, it is suitable for a wide range of small to medium pneumatic tools.

Features
• Compact in-line lubricator for pneumatic tool protection
• 1/4″ female pipe threads for easy installation
• Cast aluminium body for durability in industrial environments
• 1.05 fl oz reservoir for extended lubrication cycles
• Delivers automatic oiling to improve tool longevity and performance
• Rated to 500 psi maximum working pressure
• Handles up to 20 cfm at 90 psi airflow

Specifications
• Thread Size: 1/4″ NPT (female both ends)
• Reservoir Capacity: 1.05 fl oz
• Max Working Pressure: 500 psi
• Max Air Flow: 20 cfm @ 90 psi
• Body Material: Cast aluminium

Applications
• Lubrication of pneumatic chipping hammers
• Impact wrenches and small to medium air tools
• Air drills, sanders, grinders and scalers
• Workshops, fabrication shops and industrial air systems
• Construction, mining and plant maintenance
