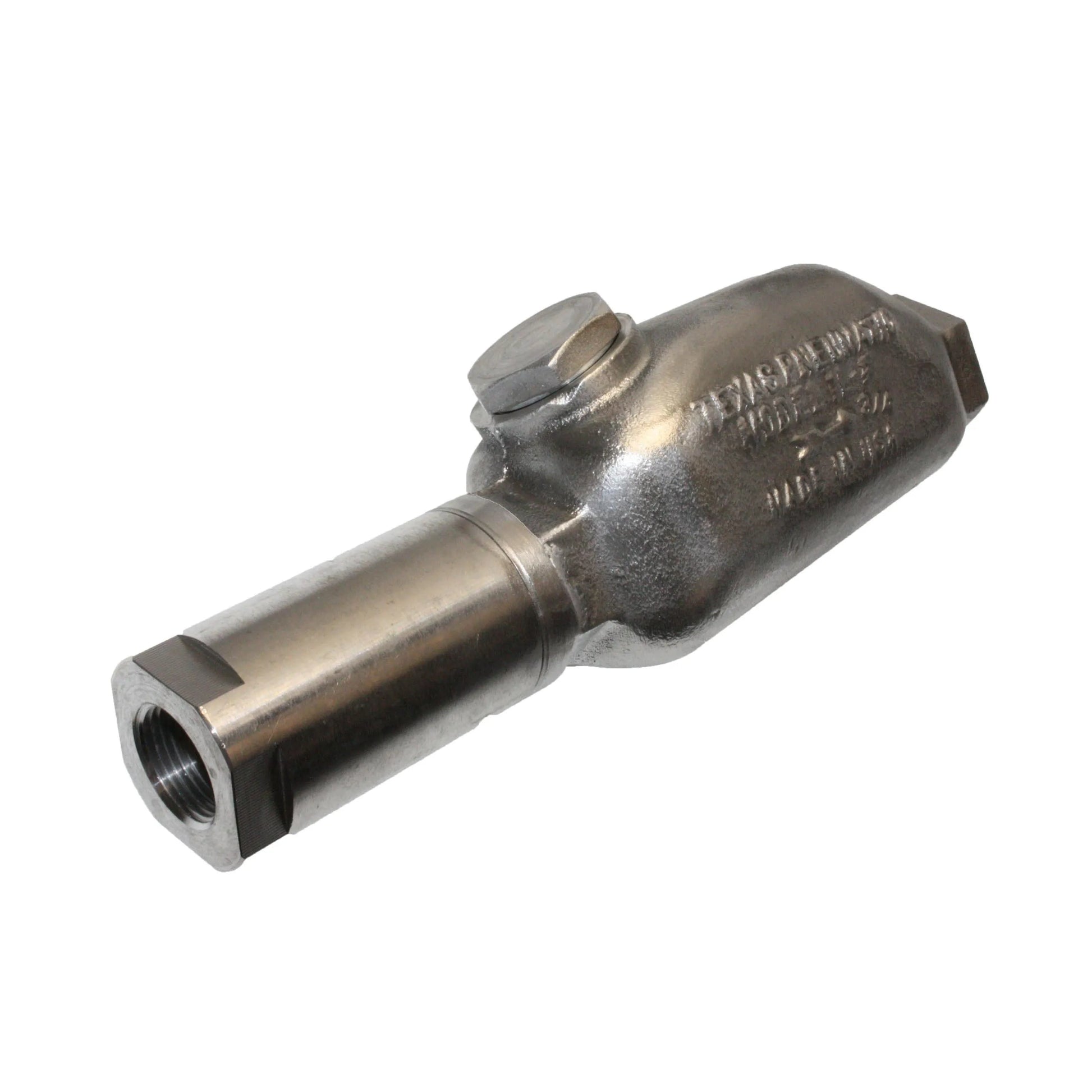

In-Line Filter-Lubricator – 3/4″ – TP-3FL (Price On Application)

The TP-3FL In-Line Filter-Lubricator is a high-capacity, dual-function air-line unit designed to protect and extend the life of medium to heavy pneumatic tools. Combining air filtration and automatic lubrication in a single unit, it removes contaminants from compressed air while ensuring consistent oil delivery to internal tool components.

Built with a strong cast-aluminium body and featuring 3/4″ female pipe threads on both ends, the TP-3FL integrates easily into industrial compressed air systems. A large 3.7 fl oz reservoir provides extended run time between refills, making it ideal for high-demand tools and continuous-duty environments.

With a maximum working pressure of 260 psi and 70 cfm airflow capacity at 90 psi, this filter-lubricator is suitable for heavy-duty air tools used in construction, mining, industrial workshops and plant maintenance.

Features
• Combined in-line filter and lubricator for complete tool protection
• 3/4″ female pipe threads for high-flow air systems
• Cast aluminium body for durability in industrial environments
• Large 3.7 fl oz reservoir for extended lubrication cycles
• Filters contaminants while providing controlled lubrication
• 260 psi maximum working pressure
• Supports up to 70 cfm @ 90 psi for heavy-duty pneumatic tools

Specifications
• Thread Size: 3/4″ NPT (female both ends)
• Reservoir Capacity: 3.7 fl oz
• Max Working Pressure: 260 psi
• Max Air Flow: 70 cfm @ 90 psi
• Body Material: Cast aluminium

Applications
• Heavy pneumatic tools such as breakers, rock drills and impact wrenches
• Industrial air systems in workshops and fabrication plants
• Construction, mining and plant maintenance
• Any system requiring high-flow filtration and lubrication
