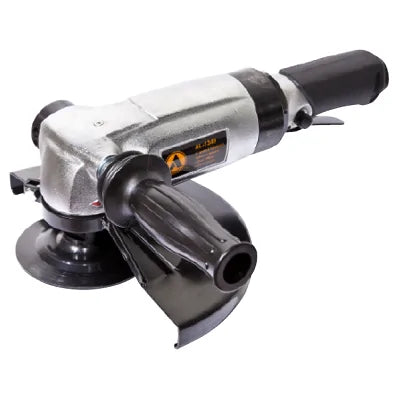

The AL-1349 230mm Heavy Duty Angle Grinder is built for demanding industrial grinding applications where power, durability and control are essential. Designed for fabrication shops, shipyards, foundries and structural maintenance environments, it delivers strong material removal with a robust pneumatic drive and heavy-duty bevel gear system. Capable of running Type 27 depressed centre grinding wheels, this grinder provides reliable performance during continuous, high-load grinding tasks.

Features
• Heavy-duty 9″ (230mm) angle grinder for industrial applications
• Strong bevel gear system for extended service life under load
• Compatible with Type 27 depressed centre grinding wheels
• High-power 1.87 kW (2.5 hp) motor for aggressive grinding
• 5900 rpm operating speed for fast material removal
• 67 cfm maximum air consumption
• M14 x 2.0 spindle
• Balanced 3.95 kg body with 1/2″ air inlet for stable operation

Applications
• Heavy grinding in fabrication and welding shops
• Shipbuilding and marine maintenance
• Foundry and casting cleanup
• Structural steel grinding
• Industrial repair and shutdown work

Specifications

• Disc Size: 230 × 6 × 22.2 mm
• Spindle Thread: M14 × 2.0
• Speed: 5900 rpm
• Power: 1.87 kW / 2.5 hp
• Air Consumption: 1897 L/min (67 cfm max)
• Weight: 3.95 kg
• Air Inlet: 1/2″
