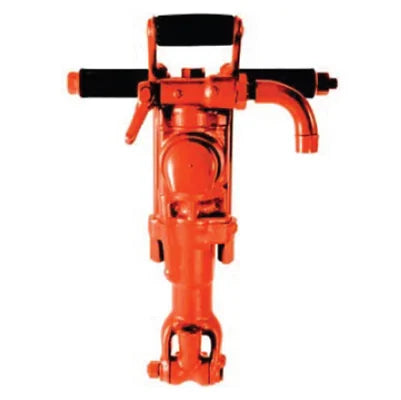

13kg Rock Drill – AL-8730 (Price On Application)

The AL-8730 13kg Rock Drill is a compact yet powerful pneumatic drill designed for mining, tunnelling, civil construction and demolition work. Its lighter weight allows for improved manoeuvrability and reduced operator fatigue while still delivering strong drilling performance. With a 62 mm bore, 37 mm stroke and 2,700 blows per minute, this drill provides efficient penetration in hard rock, concrete and reinforced substrates. Ideal for development work, overhead drilling and applications requiring both power and mobility.

Features
• Lightweight 13 kg pneumatic rock drill for improved handling
• 62 mm bore and 37 mm stroke deliver strong, efficient impact energy
• 2,700 blows per minute for fast drilling in hard materials
• 240 rpm rotation improves penetration and drilling speed
• Suitable for 22 × 83 mm and 7/8″ × 3-1/4″ chucks
• Designed for mining, tunnelling, civil excavation and demolition
• Efficient air consumption for continuous site use

Specifications
• Chuck: 22 × 83 mm or 7/8″ × 3-1/4″
• Bore: 62 mm
• Stroke: 37 mm
• Blows per Minute: 2,700
• Rotation Speed: 240 rpm
• Air Consumption: 2,100 L/min (73 cfm)
• Length: 483 mm
• Weight: 13 kg

Applications
• Mining and development drilling
• Tunnelling and civil excavation
• Rock drilling in confined or overhead positions
• Ground support installation
• Construction and demolition in hard materials
